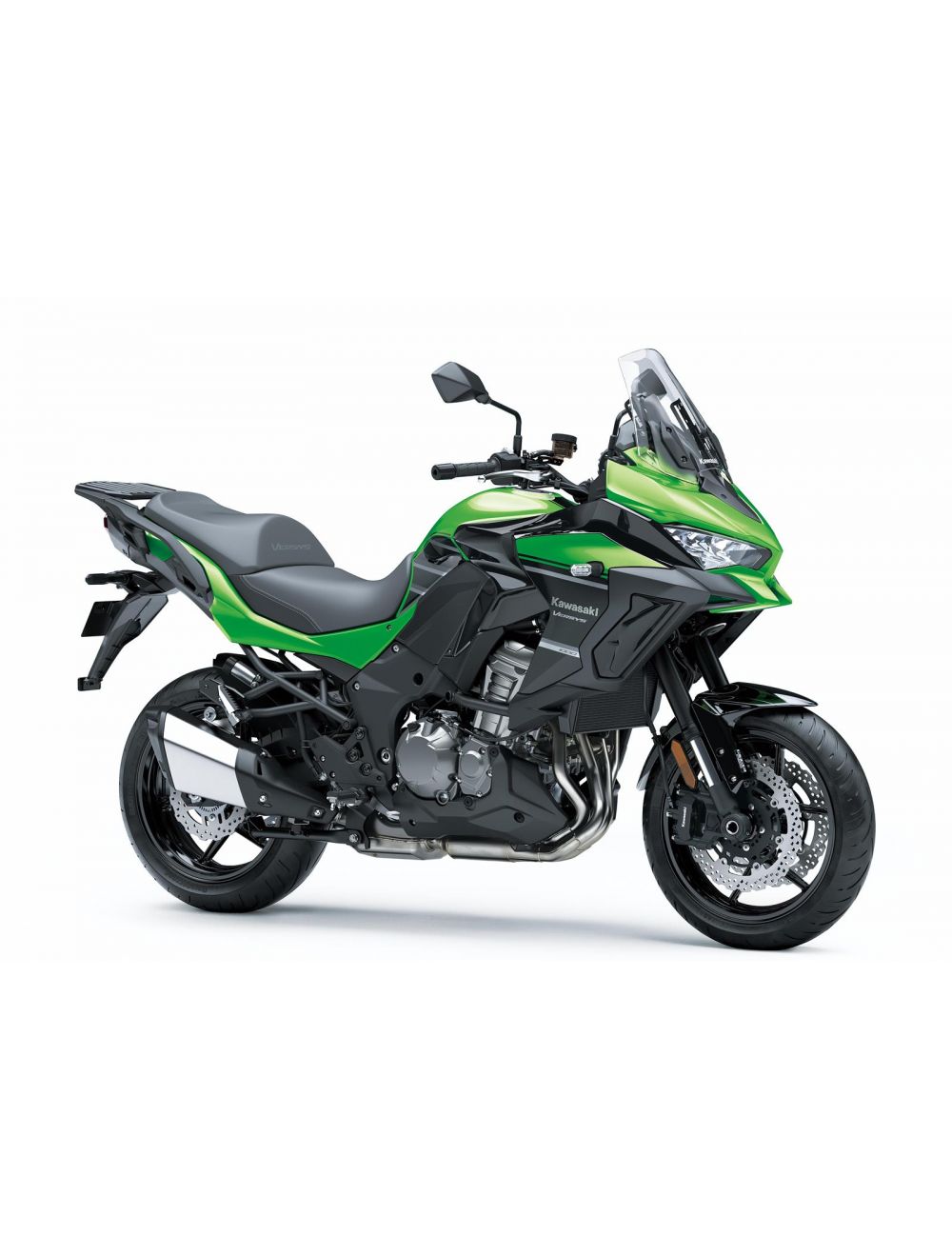

Versys 1000
Versys 1000
0,00 €
SKU
Versys 1000 2022
Engine
- Engine type
- Liquid-cooled, 4-stroke In-Line Four
- Compression ratio
- 10.3:1
- Valve system
- DOHC, 16 valves
- Bore x stroke
- 77.0 x 56.0 mm
- Displacement
- 1,043 cm³
- Fuel system
- Fuel injection: Ø 38 mm x 4
- Ignition
- Digital
- Starting System
- Electric
- Lubrication
- Forced lubrication, wet sump
Performance & Transmission
- Maximum torque
- 102 N•m {10.4 kgf•m} / 7,500 rpm
- Maximum power
- 88.2 kW {120 PS} / 9,000 rpm
- CO2 emission
- 128 g/km
- Transmission
- 6-speed, return
- Clutch
- Wet multi-disc, manual
- Primary Reduction Ratio
- 1.627 (83/51)
- Gear Ratios 1st
- 2.692 (35/13)
- Gear Ratios 2nd
- 1.950 (39/20)
- Gear Ratios 3rd
- 1.529 (26/17)
- Gear Ratios 4th
- 1.304 (30/23)
- Gear Ratios 5th
- 1.136 (25/22)
- Gear Ratios 6th
- 0.958 (23/24)
- Final drive
- Sealed chain
- Final reduction ratio
- 2.867 (43/15)
Brakes & Suspension
- Brakes, front
- Dual semi-floating 310 mm petal discs. Caliper: Dual radial-mount, monobloc, opposed 4-piston
- Brakes, rear
- Single 250 mm petal disc. Caliper: Single-piston
- Suspension, front
- 43 mm inverted fork with stepless rebound damping (right side) and spring preload adjustability
- Suspension, rear
- Horizontal Back-link, gas-charged, with stepless rebound damping and remote spring preload adjustability
Frame & Dimensions
- Frame type
- Twin-tube, aluminium
- Trail
- 106 mm
- Wheel travel front
- 150 mm
- Wheel travel rear
- 152 mm
- Tyre, front
- 120/70ZR17M/C (58W)
- Tyre, rear
- 180/55ZR17M/C (73W)
- Steering angle L/R
- 34° / 34°
- L x W x H
- 2,270 x 895 x 1,400 (1,465 high position screen) mm
- Wheelbase
- 1,520 mm
- Wheelbase
- 1,520 mm
- Ground clearance
- 150 mm
- Fuel capacity
- 21 litres
- Seat height
- 840 mm
- Curb mass
- 253 kg
