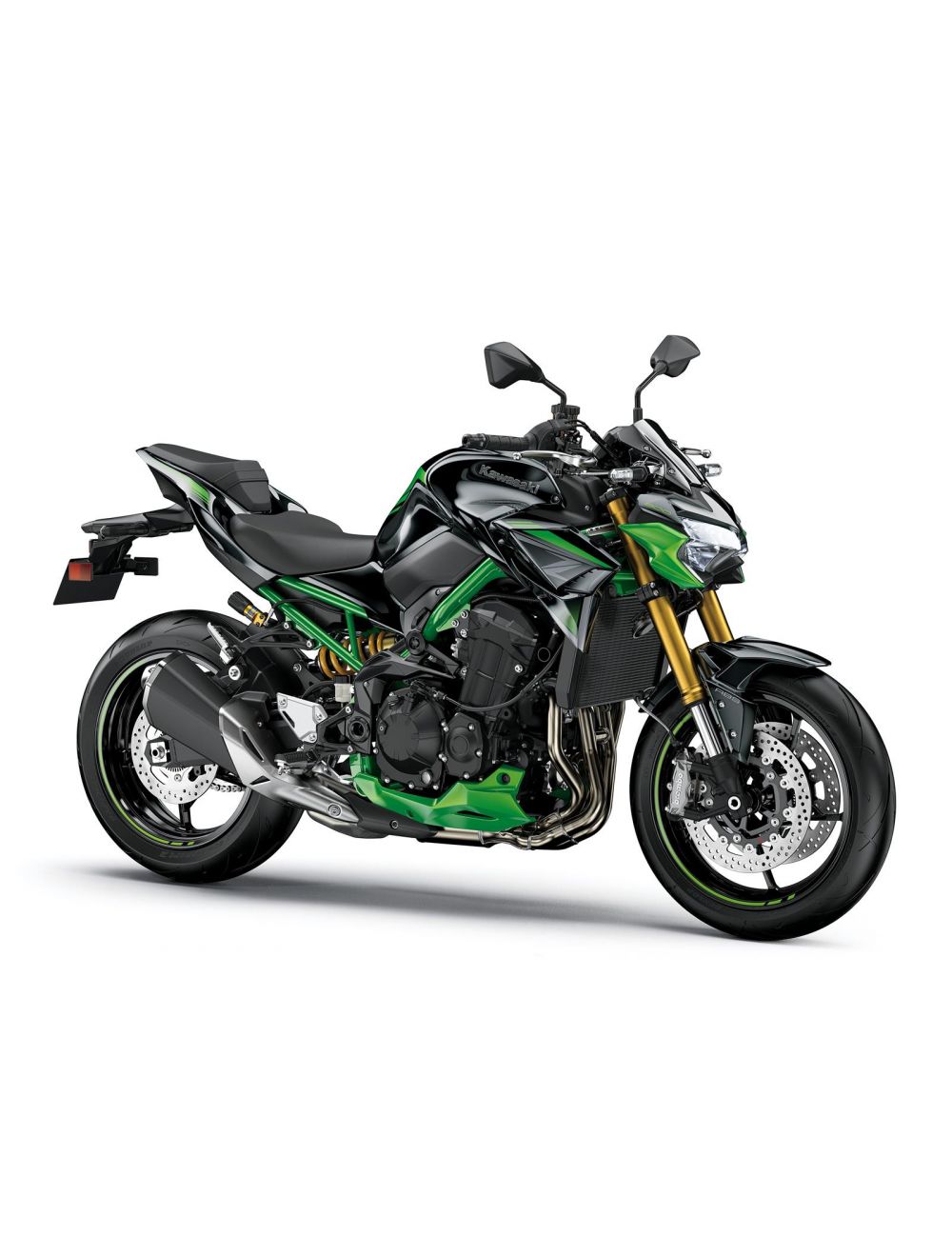

Z900SE

TECHNICAL SPECIFICATIONS

     Engine

Engine type

Liquid-cooled, 4-stroke In-Line Four

Compression ratio

11.8:1

Valve system

DOHC, 16 valves

Bore x stroke

73.4 x 56 mm

Displacement

948 cm³

Fuel system

Fuel injection: Ø 36 mm x 4 with sub-throttle

Starting System

Electric

Lubrication

Forced lubrication, wet sump

    Performance & Transmission

Maximum torque

98.6 N•m {10.1 kgf•m} / 7,700 rpm

Maximum power

92.2 kW {125 PS} / 9,500 rpm

Fuel consumption

5.7 l/100 km

Power down kit 85 kW

Available

CO2 emission

132 g/km

Fuel consumption 85 kW kit

5.7 l/100 km

CO2 emission 85 kW kit

132 g/km

Transmission

6-speed, return

Clutch

Wet multi-disc, manual

Primary Reduction Ratio

1.627 (83/51)

Gear Ratios 1st

2.692 (35/13)

Gear Ratios 2nd

2.059 (35/17)

Gear Ratios 3rd

1.650 (33/20)

Gear Ratios 4th

1.409 (31/22)

Gear Ratios 5th

1.222 (33/27)

Gear Ratios 6th

1.034 (30/29)

Final drive

Sealed chain

Final reduction ratio

2.933 (44/15)

    Brakes & Suspension

Brakes, front

Dual semi-floating 300 mm Brembo discs. Caliper: Dual radial-mount, Brembo M4.32 monobloc, opposed 4-piston

Brakes, rear

Single 250 mm disc. Caliper: Single-piston

Suspension, front

41 mm inverted fork with compression and rebound damping and spring preload adjustability

Suspension, rear

Horizontal Back-link, Öhlins S46 gas-charged shock with rebound damping and spring preload adjustability

    Frame & Dimensions

Frame type

Trellis, high-tensile steel

Trail

110 mm

Wheel travel front

120 mm

Wheel travel rear

140 mm

Tyre, front

120/70ZR17M/C (58W)

Tyre, rear

180/55ZR17M/C (73W)

Steering angle L/R

33° / 33°

L x W x H

2,070 x 825 x 1,115 mm

Wheelbase

1,455 mm

Ground clearance

145 mm

Fuel capacity

17 litres

Seat height

820 mm

Curb mass

213 kg

KEY FEATURES

Superior Suspension

The large-diameter gold-colored inverted fork with greater adjustability is complemented by a Öhlins S46 rear shock for increased ride comfort and a superior sense of grip and handling.  The rear suspension is also equipped with a remote preload adjuster, which makes it easy to adjust settings without tools to suit tandem riding or luggage.

Brembo Brakes

The front brake package with Brembo components offers stronger stopping power and contributes to even more precise control and greater ease of use. The ø300 mm Brembo front discs and M4.32 radial-mount monobloc calipers are complemented by a Nissin radial-pump master cylinder with stainless-steel braided lines to deliver greater stopping power and a more linear progression when operating the brake lever.

TFT Colour Instrumentation

The new all-digital TFT colour instrumentation gives the cockpit a high-tech, high-grade appearance. The new meter also offers additional features unavailable on the previous model.

Power Mode Selection

A choice of Full Power or Low Power modes allows riders to set power delivery to suit preference and conditions. Low Power mode limits output to approximately 55% of Full Power. (The reduced power, which varies according to engine speed (rpm) and throttle position, offers enhanced manageability.)

Latest Evolution of Z Sugomi Styling

While the Z900’s distinctive sugomi design elements (crouching stance, low-positioned head and upswept tail) remain unchanged, its eye-catching styling benefits from a number of updates that make its aggressive design even sharper.

KTRC (Kawasaki Traction Control)

Kawasaki's advanced traction control system provides both enhanced sport riding performance and the peace of mind to negotiate low-traction surfaces with confidence. Three riderselectable modes offer progressively greater levels of intrusion to suit the riding situation and rider preference.

Smartphone Connectivity

A Bluetooth technology built into the instrument panel enables riders to connect to their motorcycle wirelessly. Using the smartphone application “RIDEOLOGY THE APP,” a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience.

All-LED Lighting

New LED headlamp, position lamps, licence plate lamp and turn signals† add to the Z900’s sharper new styling.

New Tyres

New Dunlop Sportmax Roadsport 2 tyres contribute to the Z900’s handling character.

Integrated Riding Modes

All-inclusive Riding modes that link KTRC and Power Mode allow riders to easily set traction control and power delivery to suit a given riding situation. Riders can choose from three settings (Sport, Road, Rain) or a manual setting (Rider). In the manual Rider mode, each of the systems can be set independently



    HORIZONTAL BACK-LINK REAR SUSPENSION

Horizontal Back-link Rear Suspension arranges its shock unit horizontally, greatly contributing to efficient use of space and mass centralisation.

  ASSIST & SLIPPER CLUTCH

Based on racing technology, the Assist & Slipper Clutch acts as both a back-torque limiter and a self-servo mechanism that enables a lighter clutch lever pull.

    KTRC (3-MODE)

3-Mode KTRC (Kawasaki TRaction Control), Kawasaki's most advanced traction control system, offers a selection of modes to suit a variety of riding situations, from sport riding to touring.

    POWER MODES

Power Mode selection allows engine power delivery to be changed to suit the riding situation.

    DUAL THROTTLE VALVES

Dual Throttle Valves offer increased power and greater ease of use care of a second set of ECU-controlled throttle valves.

    ECONOMICAL RIDING INDICATOR

The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.

    SMARTPHONE CONNECTIVITY

Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
